Videojet Lightfoot? Canned solution
Innovative fiber laser solution suitable for high-speed canning applications

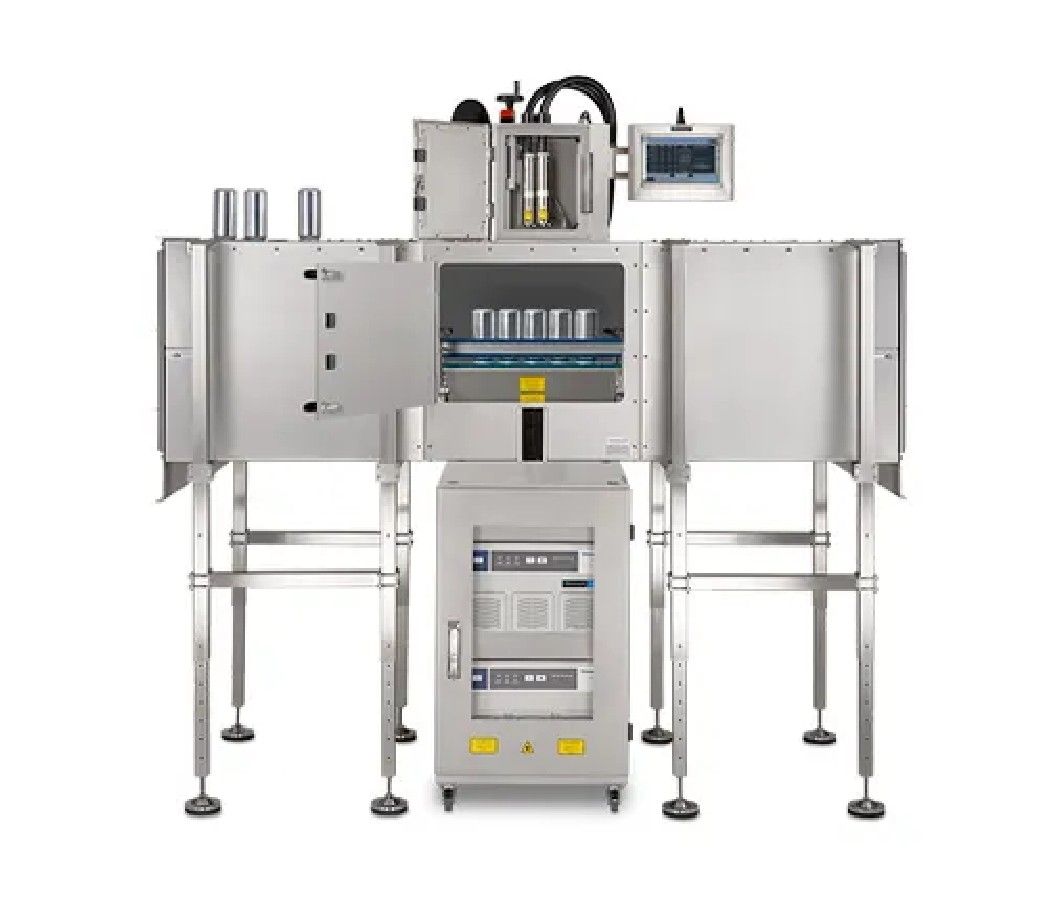

Videojet Lightfoot ?? The canning solution is developed specifically to meet the demanding requirements of high-speed beverage canning and is available to manufacturers who wish to upgrade their production lines with laser coding systems. This one-stop system is supported by continuous application and VideojetConnect ? Remote Service? Provide support to large-scale service networks, providing the reliability and performance necessary to achieve production goals.
Lightfoot ?? The canned solution has fast printing speed and a sturdy design suitable for harsh environments, providing high-quality and accurate laser coding with an integrated system. Level 1 security protection design protects the personal safety of your operators, Lightfoot ?? The dual print head provides built-in redundancy, which can significantly extend normal operating time.
01
Product Advantages
Customized for canned applications
· Printing speed can reach 100000 cans/hour

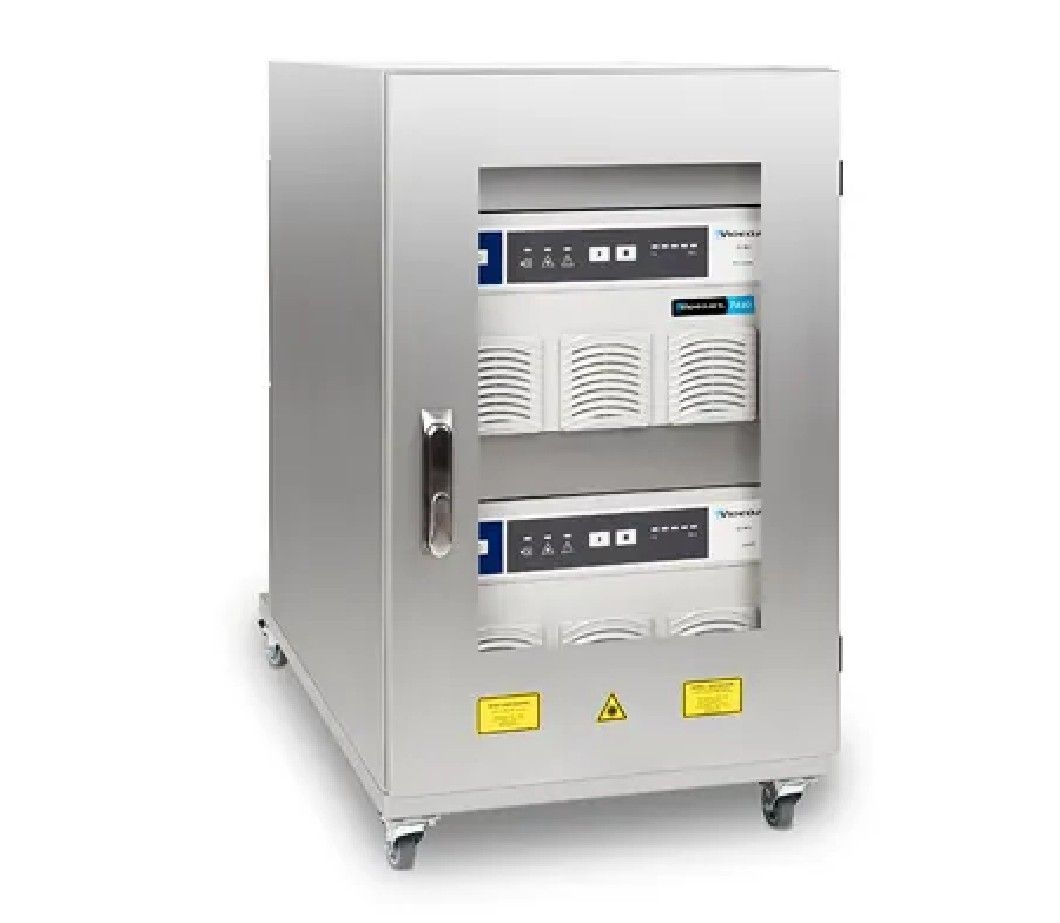

· The power cabinet has been optimized with IP65 rating and is washable
· IP69 grade print heads can easily handle harsh humid and high sugar environments

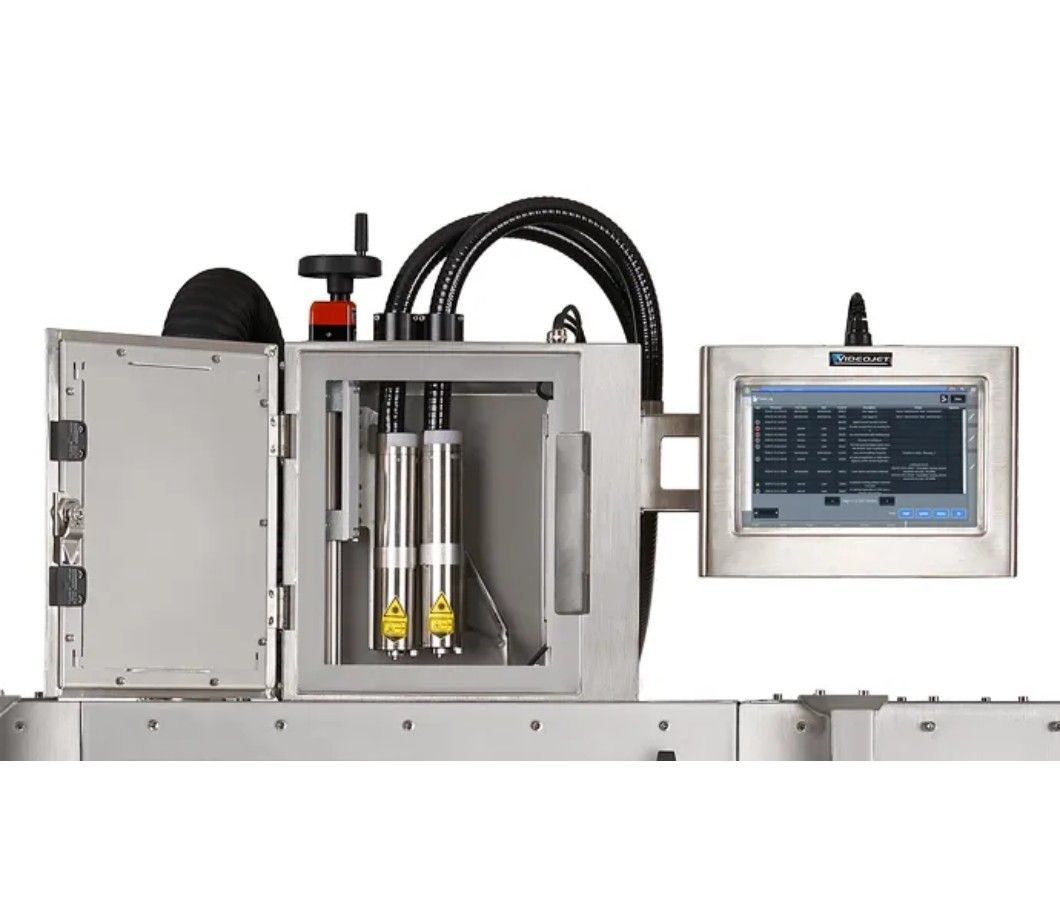

· Double print heads, print head backup ensures production line operation
*The speed capability varies depending on the application requirements.
Complete solution
· The enclosed device completely blocks light radiation, ensuring operator safety
· Wind knife can prevent dust accumulation in the output window of the print head beam, reducing the need for cleaning
· Connect with common production line integration or coding management solutions through standard industrial protocols
· VideojetConnect ? Remote Service? Significantly improve production efficiency
02
Product Specifications
Specifications | Videojet Lightfoot? Canned solution |
---|---|
激光打碼系統 | 雙頭7440光纖激光打碼機 |
激光管 | 固態光纖 |
上限功率 | 2X 30 瓦 |
激光冷卻 | 風扇 |
上限生產線速度 | 10萬罐/小時 |
防護等級 | IP65、IP69(激光打印頭) |
通道寬度可選項 | 300mm或600mm |
激光源預計使用壽命 | 50,000 個小時 |
光束輸出 | 可控光束 |
激光波長 | 1.04 – 1.09 微米 |
焦距選項 | 112.5 毫米 (4.43 英寸) |
標準 I/O 連接 | 產品檢測、行編碼器、排煙 |
可選用戶界面 | TCS+、CLARiTY? 激光打碼機控制器、Smart Graph |
使用工廠氣源 | 否 |
認證/批準 | EtherNetIP DOC、ProfiNet/PNO 認證、CE |
* 以每英寸 10 個字符的單行噴印為基準
03
Application Area
